Червячни редуктори
![](https://www.reductor-dragnev.com/wp-content/uploads/2022/05/cherviachen_reductor.jpg)
Мотор редуктор | I | 56 | 63 | 71 | 80 | 90 | 100 | 112 | 132 |
EN030 | 5,25 | X | X | – | – | – | – | – | – |
7,25 | X | X | – | – | – | – | – | – | |
10,5 | X | X | – | – | – | – | – | – | |
14,5 | X | X | – | – | – | – | – | – | |
17 | X | X | – | – | – | – | – | – | |
21 | X | X | – | – | – | – | – | – | |
25 | X | X | – | – | – | – | – | – | |
29 | X | X | – | – | – | – | – | – | |
34 | X | X | – | – | – | – | – | – | |
42 | X | X | – | – | – | – | – | – | |
50 | X | X | – | – | – | – | – | – | |
60 | X | X | – | – | – | – | – | – | |
80 | X | X | – | – | – | – | – | – | |
EN40 | 8 | – | X | X | – | – | – | – | – |
12 | – | X | X | – | – | – | – | – | |
16 | – | X | X | – | – | – | – | – | |
21 | – | X | X | – | – | – | – | – | |
42 | – | X | X | – | – | – | – | – | |
50 | – | X | X | – | – | – | – | – | |
62 | – | X | X | – | – | – | – | – | |
25 | – | X | X | – | – | – | – | – | |
32 | – | X | X | – | – | – | – | – | |
10,5 | – | X | X | – | – | – | – | – | |
80 | – | X | X | – | – | – | – | – | |
100 | – | X | X | – | – | – | – | – | |
EN050 | 7,25 | – | – | X | X | X | – | – | – |
9,5 | – | – | X | X | X | – | – | – | |
12 | – | – | X | X | X | – | – | – | |
14,5 | – | – | X | X | X | – | – | – | |
19 | – | X | X | X | X | – | – | – | |
25 | – | X | X | X | X | – | – | – | |
29 | – | X | X | X | X | – | – | – | |
38 | – | X | X | X | X | – | – | – | |
50 | – | X | X | X | X | – | – | – | |
62 | – | X | X | X | X | – | – | – | |
83 | – | X | X | X | X | – | – | – | |
100 | – | X | X | X | X | – | – | – | |
EN063 | 7,25 | – | – | X | X | X | – | – | – |
9,75 | – | – | X | X | X | – | – | – | |
12,75 | – | – | X | X | X | – | – | – | |
14,5 | – | – | X | X | X | – | – | – | |
19,5 | – | – | X | X | X | – | – | – | |
25,5 | – | – | X | X | X | – | – | – | |
29 | – | – | X | X | X | – | – | – | |
39 | – | – | X | X | X | – | – | – | |
51 | – | – | X | X | X | – | – | – | |
61 | – | – | X | X | X | – | – | – | |
82 | – | – | X | X | X | – | – | – | |
109 | – | – | X | X | X | – | – | – | |
100 | – | – | X | X | X | – | – | – | |
EN080 | 7,5 | – | – | – | X | X | X | X | – |
10 | – | – | – | X | X | X | X | – | |
13,25 | – | – | – | X | X | X | X | – | |
15 | – | – | – | X | X | X | X | – | |
20 | – | – | – | X | X | X | X | – | |
26,5 | – | – | – | X | X | X | X | – | |
30 | – | – | – | X | X | X | X | – | |
40 | – | – | – | X | X | X | X | – | |
53 | – | – | – | X | X | X | X | – | |
62 | – | – | – | X | X | X | X | – | |
82 | – | – | – | X | X | X | X | – | |
110 | – | – | – | X | X | X | X | – | |
EN100 | 7,5 | – | – | – | X | X | X | X | – |
7,5 | – | – | – | X | X | X | X | – | |
10 | – | – | – | X | X | X | X | – | |
13 | – | – | – | X | X | X | X | – | |
15 | – | – | – | X | X | X | X | – | |
20 | – | – | – | X | X | X | X | – | |
26 | – | – | – | X | X | X | X | – | |
30 | – | – | – | X | X | X | X | – | |
40 | – | – | – | X | X | X | X | – | |
52 | – | – | – | X | X | X | X | – | |
63 | – | – | – | X | X | X | X | – | |
82 | – | – | – | X | X | X | X | – | |
107 | – | – | – | X | X | X | X | – | |
EN125 | 2,25 | – | – | – | X | X | X | X | X |
10 | – | – | – | X | X | X | X | X | |
13 | – | – | – | X | X | X | X | X | |
14,5 | – | – | – | X | X | X | X | X | |
20 | – | – | – | X | X | X | X | X | |
26 | – | – | – | X | X | X | X | X | |
29 | – | – | – | X | X | X | X | X | |
40 | – | – | – | X | X | X | X | X | |
52 | – | – | – | X | X | X | X | X | |
62 | – | – | – | X | X | X | X | X | |
83 | – | – | – | X | X | X | X | – | |
107 | – | – | – | X | X | X | X | – |
![cherviachni](https://www.reductor-dragnev.com/wp-content/uploads/2021/11/cherviachni_chertej.jpg)

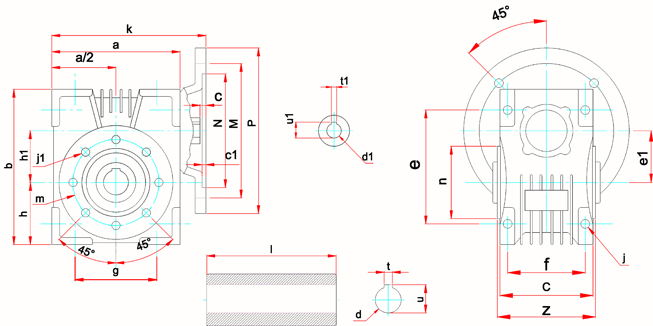

ТИП TYPE | Монтажни размери Mounting dimensions | Размери на фланеца Flange dimensions | Размери на вала Shaft dimensions | ||||||||||||||||||||||
a | b | c | e e1 | f | g | h h1 | j | J1 | m n | p z | k | M | N | P | c | C1 | d | t | U | D1 | T1 | U1 | 1 | ||
EN030.00 | 56/B14 63/B14 63/B5 | 80 | 97 | 55 | 72 44,5 | 45 | 55 | 40 30 | 6,5 | M5 | 65 55 | 6 55 | 93 | 50 60 95 | 65 75 115 | 80 90 140 | 4,2 4,2 4,2 | 3 3 3,5 | 14 | 5 | 16,3 | 9 11 11 | 3 4 4 | 10,4 12,8 12,8 | 66 |
EN040.00 | 63/B14 63/B5 71/B14 71/B5 | 103 | 112 | 70 | 90 56 | 60 | 70 | 50 40 | 6,5 | M6 | 65 50 | 6 73 | 128 | 60 95 70 110 | 75 115 85 130 | 90 140 105 160 | 9 9 9 9 | 2,5 3,5 2,5 4 | 18 | 6 | 20,8 | 11 11 14 14 | 4 4 5 5 | 12,8 12,8 16,3 16,3 | 82 |
EN050.00 | 63/B5 71/B14 71/B5 80/B14 80/B5 80/B14 80/B5 100/B14 | 124 | 150 | 90 | 110 70 | 75 | 79 | 60 50 | 8,5 | M8 | 85 70 | 6 89 | 149 | 95 70 110 80 130 95 130 110 | 115 85 130 100 165 115 165 130 | 140 105 160 120 200 140 200 160 | 5,7 10,7 10,7 10,7 5,7 10,7 10,7 5,7 | 4,5 3 4,5 4 4,5 4,5 4,5 4,5 | 25 | 8 | 28,3 | 11 14 14 19 19 24 24 28 | 4 5 5 6 6 8 8 8 | 12,8 16,3 16,3 21,8 21,8 27,3 27,3 31,3 | 98 |
EN063.00 | 71/B14 71/B5 80/B14 80/B5 90/B14 90/B5 100/B14 | 154 | 180 | 110 | 135 80 | 92 | 110 | 77 63 | 8,5 | M8 | 95 80 | 8 112 | 179 | 70 110 80 130 95 130 110 | 85 130 100 165 115 165 130 | 105 160 120 200 140 200 160 | 5,7 5,7 5,7 5,7 5,7 5,7 5,7 | 3 4,5 4 4,5 4,5 4,5 4,5 | 25 | 8 | 28,3 | 14 14 19 19 24 24 28 | 5 5 6 6 8 8 8 | 16,3 16,3 21,8 21,8 27,3 27,3 31,3 | 122 |
EN080.00 | 80/B14 80/B5 90/B14 90/B5 100-12/B14 100-112/B5 | 192 | 226 | 120 | 172 104 | 100 | 137 | 96 80 | 13 | M8 | 115 95 | 10 120 | 218,5 | 80 130 95 130 110 180 | 100 165 115 165 130 215 | 120 200 140 200 160 250 | 5,5 5,5 5,5 5,5 5,5 5,5 | 5 4,5 5 4,5 4 4,5 | 35 | 10 | 38,3 | 19 19 24 24 28 28 | 6 6 8 8 8 8 | 21,8 21,8 27,3 27,3 31,3 31,3 | 133 |
EN100.00 | 80/B14 80/B5 90/B14 90/B5 100-12/B14 100-112/B5 | 234 | 275 | 135 | 195 115 | 110 | 160 | 115 110 | 13 | M8 | 130 110 | 14 140 | 260,5 | 80 130 95 130 110 180 | 100 165 115 165 130 215 | 120 200 140 200 160 250 | 5,5 5,5 5,5 5,5 5,5 5,5 | 5 4,5 5 4,5 4 4,5 | 42 | 12 | 45,3 | 19 19 24 24 28 28 | 6 6 8 8 8 8 | 21,8 21,8 27,3 27,3 31,3 31,3 | 156 |
EN125.00 | 90/B5 100-12/B14 100-112/B5 132/B14 132/B5 | 290 | 350 | 155 | 260 150 | 125 | 210 | 145 125 | 13 | M10 | 165 130 | 16 169 | 323 | 130 110 180 130 230 | 165 130 215 165 265 | 200 160 250 200 300 | 12,7 12,7 12,7 12,7 12,7 | 4 4 4 4 4 | 45 | 14 | 48,8 | 24 28 28 38 38 | 8 8 8 10 10 | 27,3 31,3 31,3 41,3 41,3 | 185 |
